Four-dimensional wavetable oscillator
Get ready to set sail

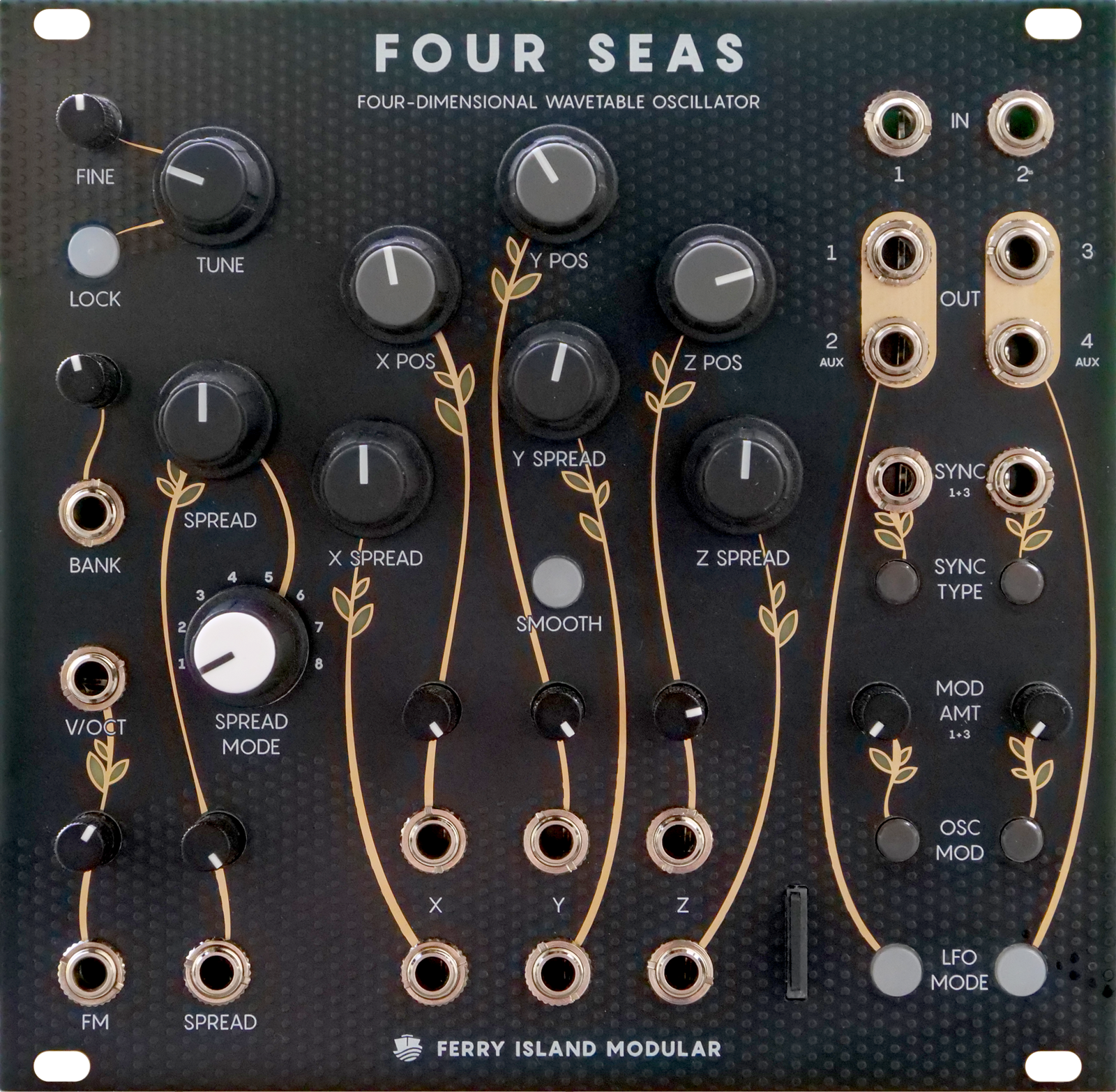

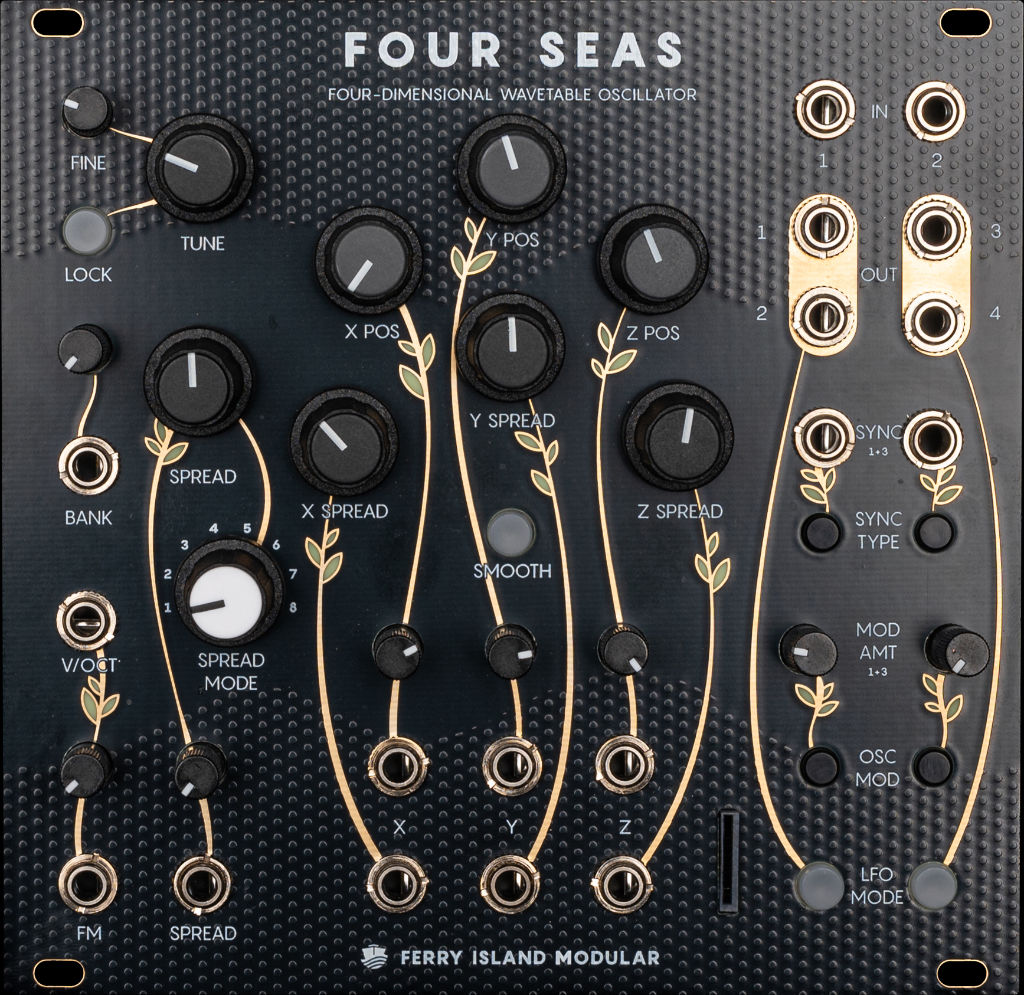

Four Seas is a four-dimensional wavetable oscillator in 26 HP. It has four related outputs with a spread control (with several switchable modes) to define how the spread frequency relationships behave; gentle detune, over/undertones, chords, and microtonal exploration are all possible.
Additionally, there's wave spread control over the X, Y, and Z wave positions relative to each other.
Here's the full rundown:
- Four related outputs inspire fun, creative patching and “happy accidents”
- No screens, no presets, and minimal modes make this an intuitive, playable instrument. Less RTFM and more music
- Three-dimensional wavetable engine plus voltage controlled bank switching gives a huge sonic range
- Easy loading of own wavetables from SD card
- Great sounding audio rate oscillator modulation (thru-zero phase mod, waveshaping, and bitwise XOR)
- Two sync inputs with selectable sync types
- Compatible with Monome Teletype and other modules that are I2C compatible
- Only 26 HP
- Open source firmware, hacking encouraged
Links and downloads
Coming soon!
Technical specifications
Power
+12 V 230 mA, -12 V 50 mA
Width
26 HP
Depth
30 mm with power cable
